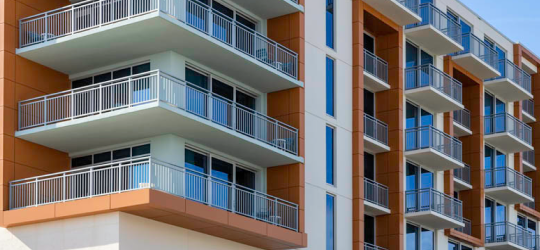

Route & Return

Route & Return

  • ALUCOBOND PLUS is used in Route & Return systems, while AXCENT may be used for metal trim applications.
  • The drain-back ventilated rainscreen system protects the wall of the building from high and rapid temperature changes. The system is designed to block nearly all moisture, however, when water does enter the cavity it will drain through the designed weep holes or will dry naturally via the airflow of the cavity.
  • The wet system uses a primary silicone sealant for air and water barrier, along with a simple clip design. These systems are economical, and are recommended for use on sloping walls.
  • The pressure equalized rainscreen system creates pressure equilibrium between the cavity and the outside wind force. This prevents any capillary movement of water into the cavity.
Rainscreen Male/Female

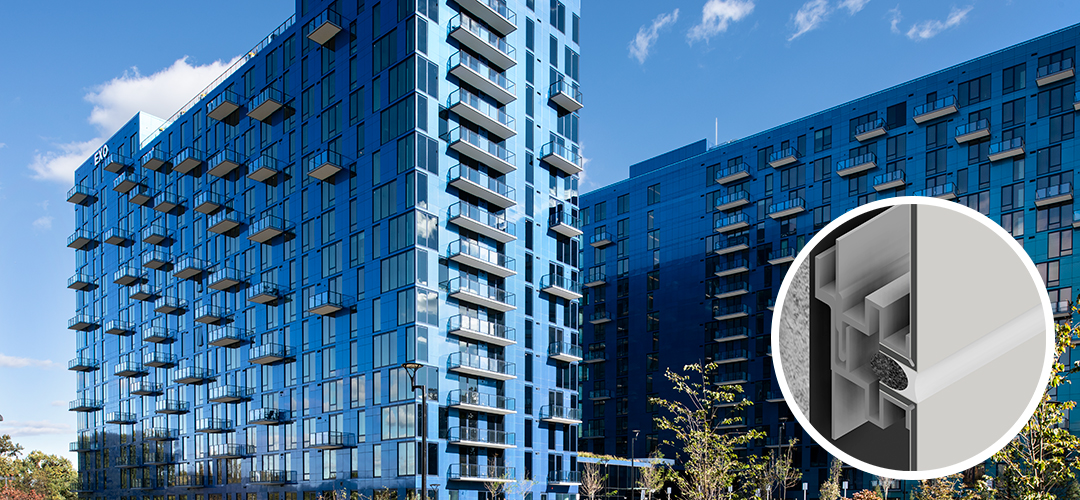

Wet Seal
Rainscreen Male/Female with CI
ALUCOBOND PLUS Exterior Spec

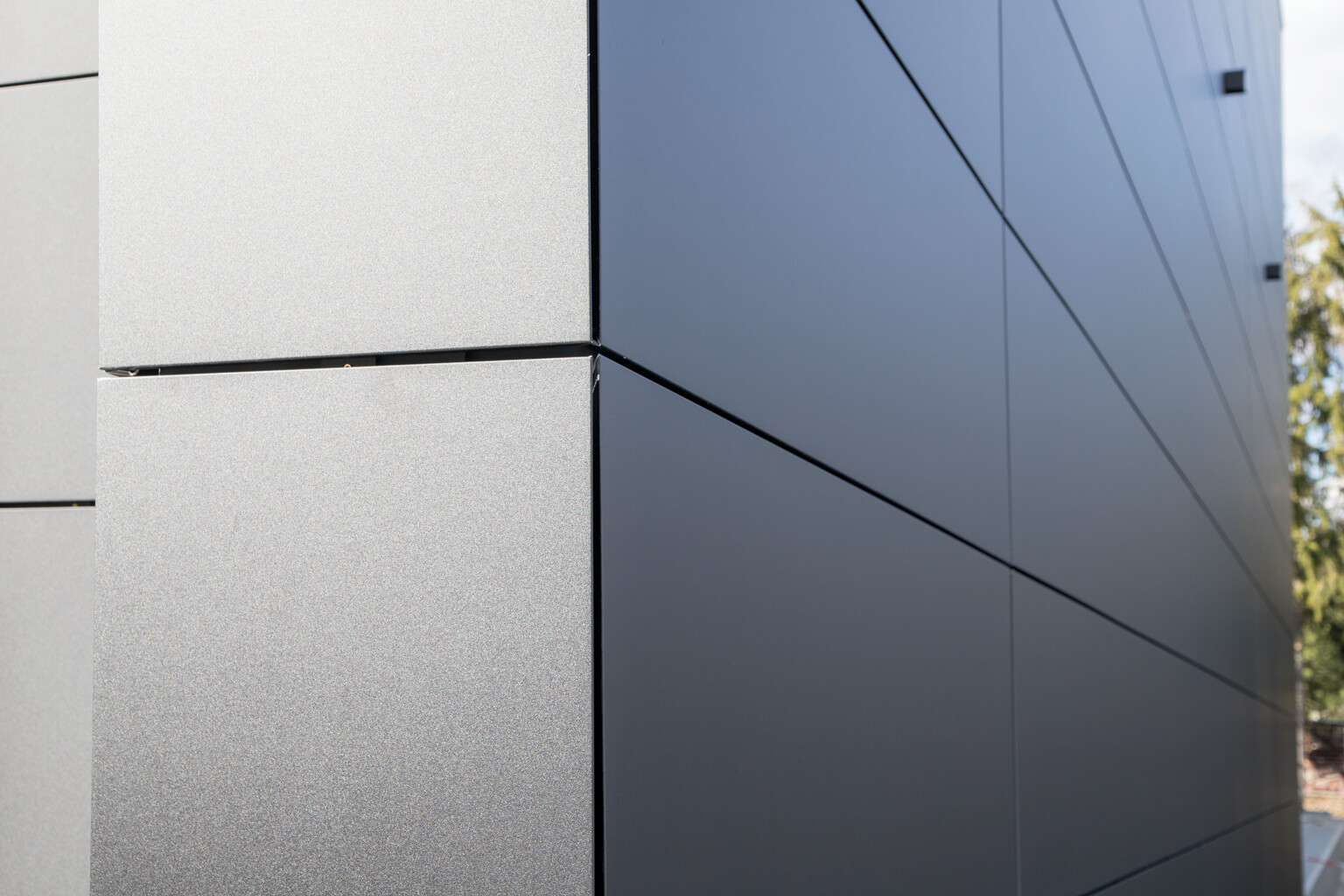

ALUCOBOND EasyFix

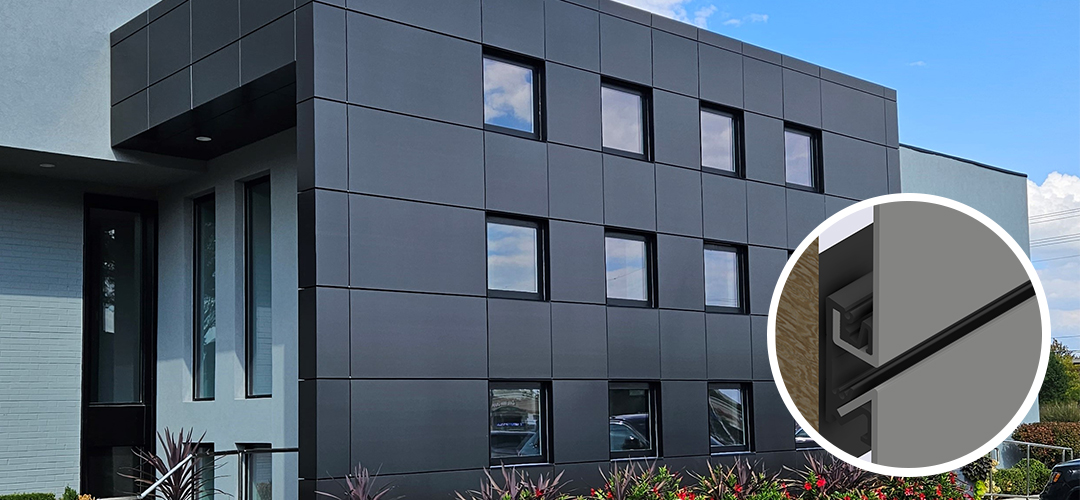

ALUCOBOND EasyFix

  • Utilizing an innovative design for the attachment of ALUCOBOND PLUS panels, ALUCOBOND EasyFix offers simplicity and efficiency in meeting tight construction schedules.
  • ALUCOBOND EasyFix is a cost-effective installation method for wood-frame construction in multifamily and mixed-use sectors.
  • The design provides an aesthetic solution similar to traditional ACM systems, combining 2 types of folds - 135° and 90°.
  • Using the available attachment system, panels insert into short clips or a continuous rail. Ideal for exterior or interior cladding.
135°/90° Horizontal Top to Bottom Install
135°/90° Vertical Install
135°/90° Horizontal Bottom to Top Install
ALUCOBOND EasyFix Spec

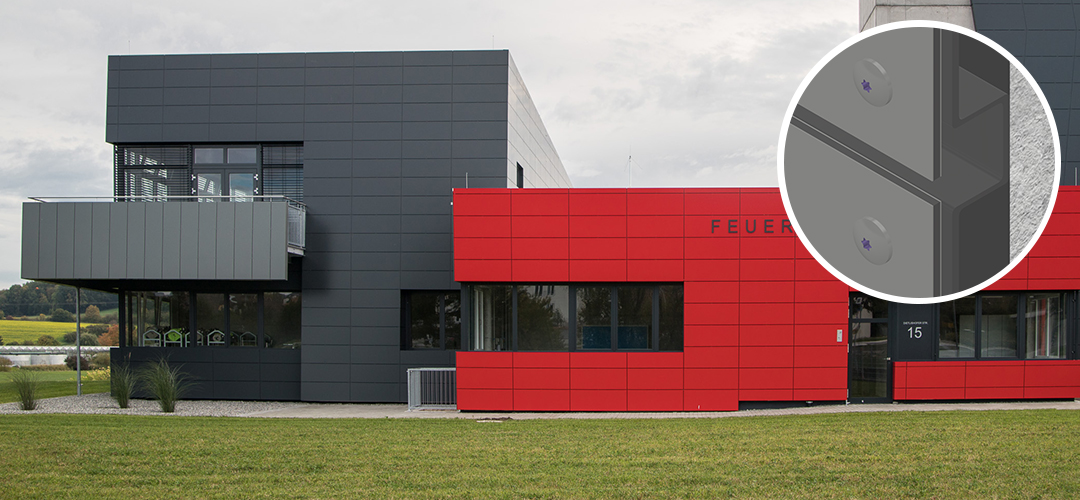

ALUCOBOND FaceFastened

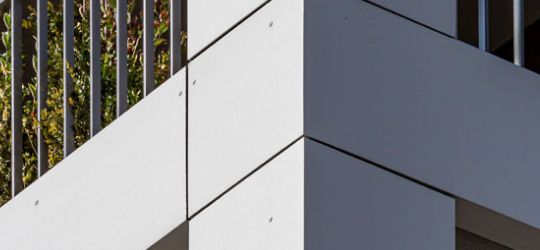

ALUCOBOND FaceFastened

  • The simplicity of the system reduces cost on shipping, fabrication and installation.
  • Coated aluminum extrusions provide clean shadow lines between panels.
  • Coated fastener heads can be painted to match the panels or to contrast them based upon the designer’s preference.
  • By folding the front skin around the edges of the panel, a clean look can be delivered from all viewing angles.
  • Special design of fasteners prevents over-rotating into the face of the ALUCOBOND PLUS panels.
ALUCOBOND FaceFastened Details
ALUCOBOND FaceFastened Spec

AXCENT EasyLoc

AXCENT EasyLoc

ALUCOBOND

(choose a product to learn more.)
PLUS       AXCENT


To learn more about ALUCOBOND and how to use our systems on your next project please contact your local Sales Manager.
