ALUCOBOND EasyFix™ is an innovative, cost-effective installation method for installing ALUCOBOND PLUS 4mm ACM on multi-story wood-frame construction.

Easyfix

Utilizing an innovative design for the attachment of ALUCOBOND PLUS panels, ALUCOBOND EasyFix offers simplicity and efficiency in meeting tight construction schedules. Trend-forward color options along with customizable panel layouts, widths and lengths allow for freedom in design. ALUCOBOND’s 50-year history of proven performance provides the architectural community:

  • Long-term value
  • Best-in-class durability
  • Confidence in fire safety standards set by the International Building Code (IBC)
  • 100% recyclable material
  • LEED contribution
  • Zero VOC’s on-site
  • Available in all ALUCOBOND PLUS Colors and Finishes
Alucobond Plus

The Concept

Concept-Image

ALUCOBOND EasyFix is a simple installation method utilizing an innovative design for attachment of ALUCOBOND PLUS panels. The design provides an aesthetic solution similar to traditional ACM systems, combining 2 types of folds.

ALUCOBOND EasyFix must be installed with ALUCOBOND PLUS 4mm aluminum composite material and ALUCOBOND EasyFix clips or rails. Using the available attachment system, simply insert the panels with short clips or with a continuous rail.

The Concept

Easyfix

ALUCOBOND EasyFix is a simple installation method utilizing an innovative design for attachment of ALUCOBOND PLUS panels. The design provides an aesthetic solution similar to traditional ACM systems, combining 2 types of folds.

Introducing ALUCOBOND EasyFix

System

Exterior-RR-Horizontal-Joint

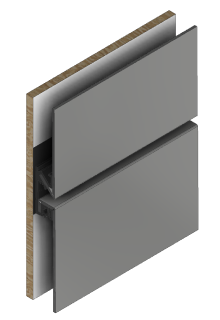

Horizontal Top to bottom

EasyFix-Vertical-Instal

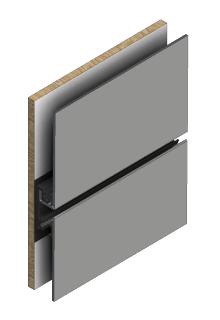

Horizontal bottom to top

HAT-CHANNEL

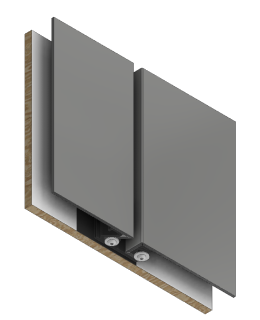

vertical

View Details

“Buildings don’t always come together as perfectly as planned. Not only is ALUCOBOND EasyFix very cost effective, but it affords a lot of installation flexibility so you can adjust it to the wall as built – that’s important. ALUCOBOND EasyFix lives up to its name, EasyFix clips and ALUCOBOND PLUS panels install quickly and easily.”

David Miller
President, Penn State Construction

Properties

System Weight 1.9 lb/ft2
Max Panel Width Surface* 36"
Maximum Sheet Width/Length 62" / 400"
Clip Length 3"
Rail Length 8'


Data Sheet

Spec Library

ALUCOBOND EasyFix
Download our specification for ALUCOBOND EasyFix, available by installation methods as follows.

EasyFix Details Horizontal Exterior Insulation
EasyFix Details Horizontal No Exterior Insulation
EasyFix Details Vertical Exterior Insulation
EasyFix Details Vertical No Exterior Insulation
ALUCOBOND® EasyFix™ Specification
